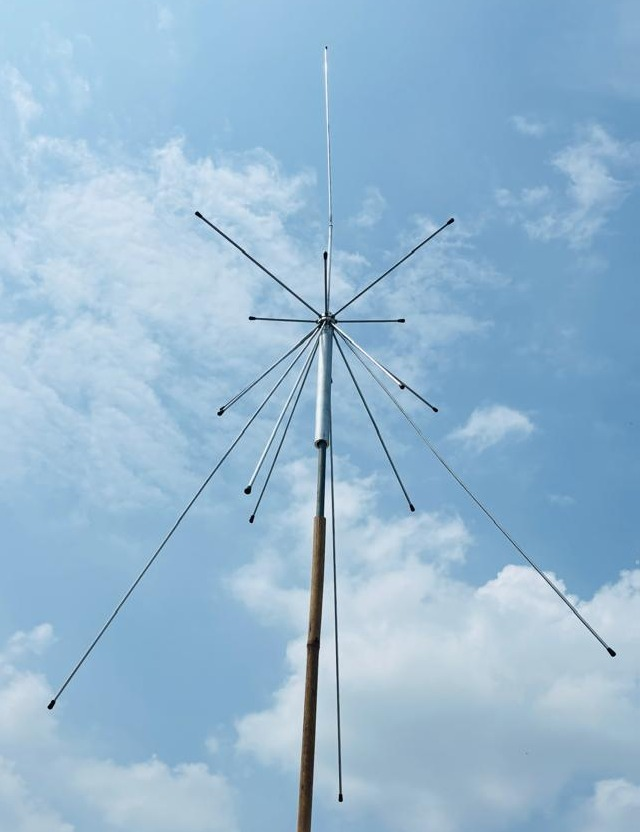

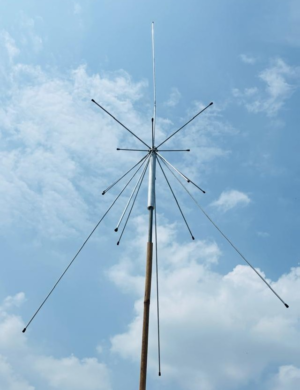

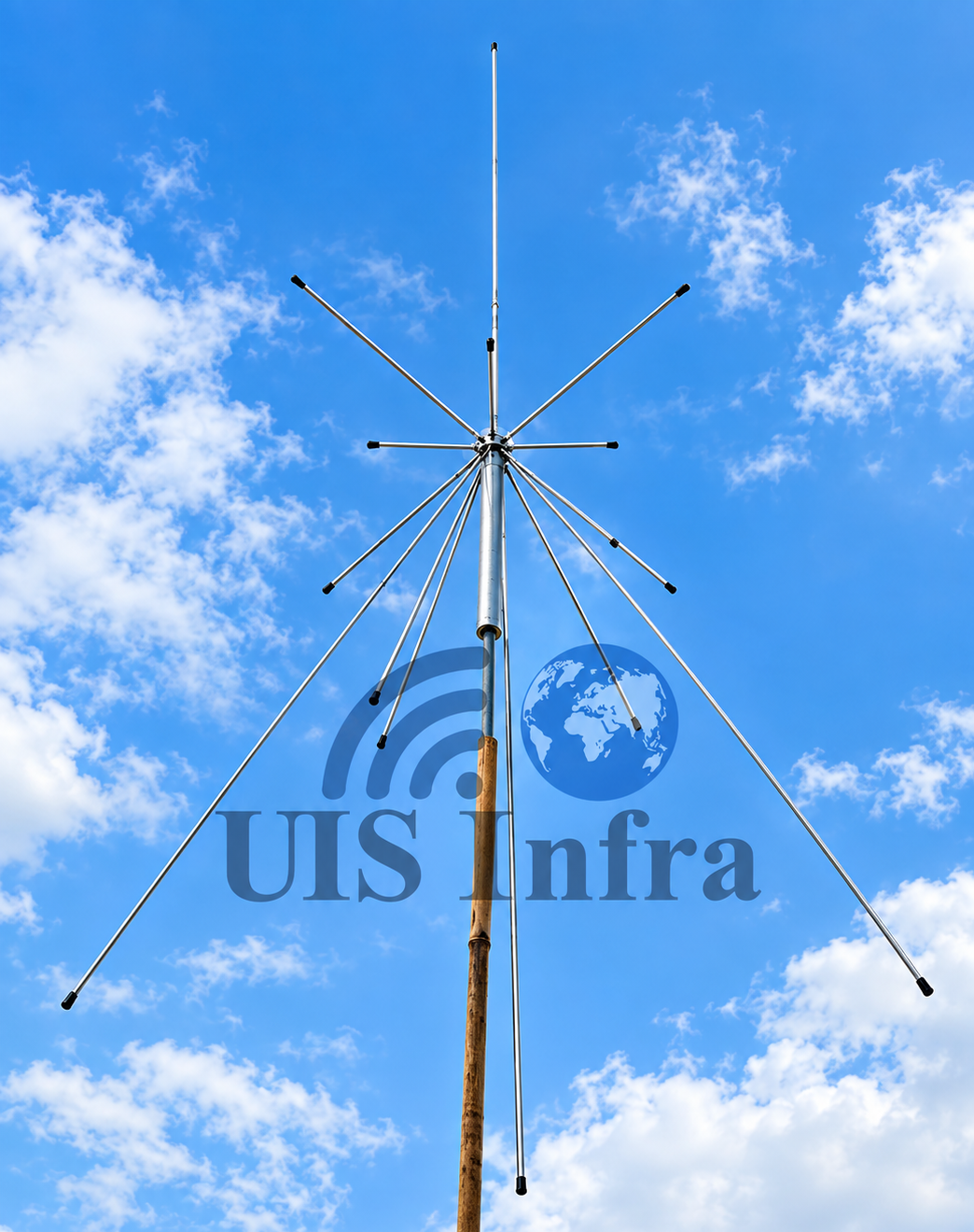

Ultra Wideband Discone Antenna 25-3000Mhz

The Ultra Wideband Discone Antenna 25–3000 MHz is a rugged omnidirectional antenna designed for wide-frequency RF monitoring, scanning, testing, and communication applications. It provides broad coverage from 25 MHz to 3 GHz, 50Ω impedance, and reliable outdoor performance for VHF, UHF, and SHF applications.
Wide-Frequency Coverage Monitor a broad range of signals with the Ultra Wideband Discone Antenna, covering 25 MHz to 3 GHz for VHF, UHF, and SHF applications.

Versatile Performance Its omnidirectional design suits RF monitoring, scanning, testing, and communication setups, with a 50Ω impedance.

Built for Outdoor Use Rugged construction supports reliable outdoor performance across a wide range of applications.



Parameter Specification
Product Type Ultra Wideband Discone Antenna
Frequency Range 25–3000 MHz
Antenna Type Discone
Radiation Pattern Omnidirectional
Polarization Vertical
Gain 2–3 dBi Max.
Impedance 50 Ω
VSWR ≤ 3.5:1 Max.
Connector N Female / N Socket
Maximum Power Handling Up to 200 W*
Antenna Element Material Aluminium
Mounting Pole Mount
Mounting Hardware SS Clamp, U-Bolts, Nuts & Bolts
Application Wideband Monitoring & Receiving
Operating Mode Primarily Receiving; TX capability depends on frequency/VSWR design
Outdoor Use Yes
ROHS Compliant
Typical Height Approx. 2.6~2.8m, depending on design
Weight Approx. 1–6 kg, depending on configuration
Add to WishlistRemove from Wishlist
Add to Wishlist
Compare
Category: Tags: , , , , , , , ,

Description

Parameter Specification
Product Type Ultra Wideband Discone Antenna
Frequency Range 25–3000 MHz
Antenna Type Discone
Radiation Pattern Omnidirectional
Polarization Vertical
Gain 2–3 dBi Max.
Impedance 50 Ω
VSWR ≤ 3.5:1 Max.
Connector N Female / N Socket
Maximum Power Handling Up to 200 W*
Antenna Element Material Aluminium
Mounting Pole Mount
Mounting Hardware SS Clamp, U-Bolts, Nuts & Bolts
Application Wideband Monitoring & Receiving
Operating Mode Primarily Receiving; TX capability depends on frequency/VSWR design
Outdoor Use Yes
ROHS Compliant
Typical Height Approx. 2.6~2.8m, depending on design
Weight Approx. 1–6 kg, depending on configuration

Additional information

Brand

UIS INFRA
