Description

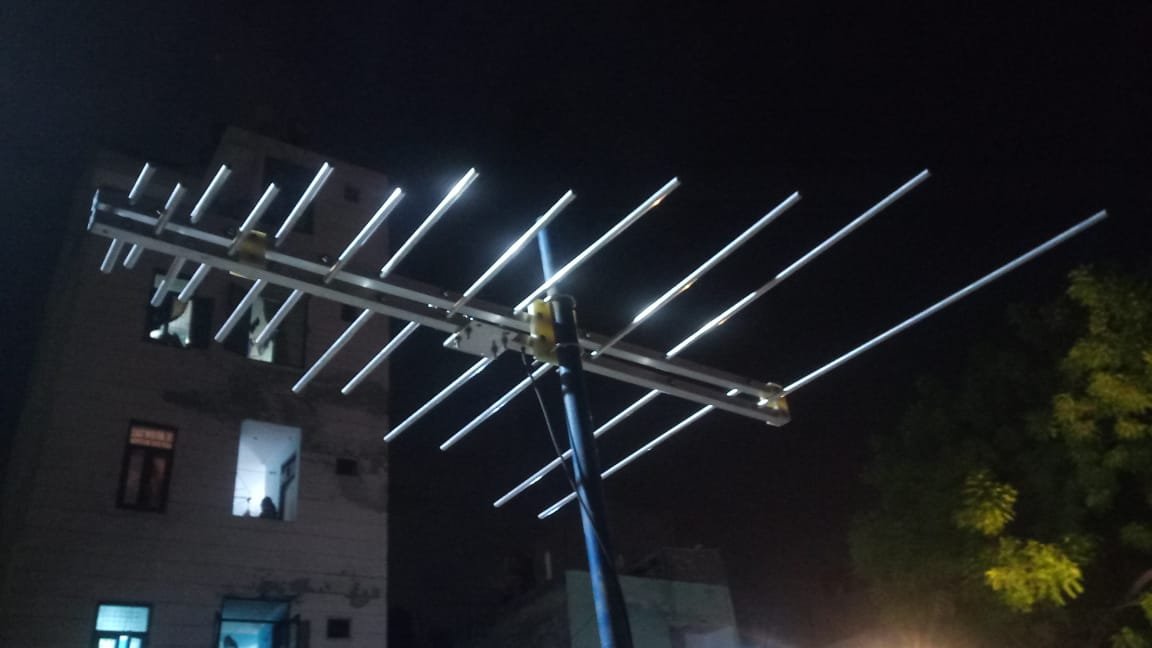

Ultra-wideband 100–1000 MHz LPDA antenna with 6 dBi gain and directional radiation pattern, designed for reliable RF communication, spectrum monitoring, surveillance, defence, and wireless applications.
| Parameter | Specification |
| Antenna Type | Log Periodic Dipole Array (LPDA) |
| Frequency Range | 100–1000 MHz |
| Gain | 6 dBi Typical |
| VSWR | ≤ 2.0:1 |
| Impedance | 50 Ω |
| Polarization | Linear – Vertical / Horizontal |
| Radiation Pattern | Directional |
| E-Plane Beamwidth | 45°–60° Typical |
| H-Plane Beamwidth | 90°–100° Typical |
| Front-to-Back Ratio | ≥ 10 dB Typical |
| Connector | N-Female |
| Power Handling | 200W |
| Element Material | Aluminum |
| Mounting Hardware | Stainless Steel |
| Mounting | Pole/Mast Mount |
| Operating Temperature | Approx. −25°C to +55°C |
| Applications | RF Monitoring, Spectrum Monitoring, Communication, Surveillance, Defence & Electronic Warfare |
