Description
Outdoor armored CPRI fiber optic patch cord with NSN boot and duplex LC connectors, suitable for Nokia telecom equipment and demanding outdoor fiber connectivity applications.
| Parameter | Specification |
| Product Type | CPRI Outdoor Armored Fiber Optic Patch Cord |
| Connector | Duplex LC with NSN Boot |

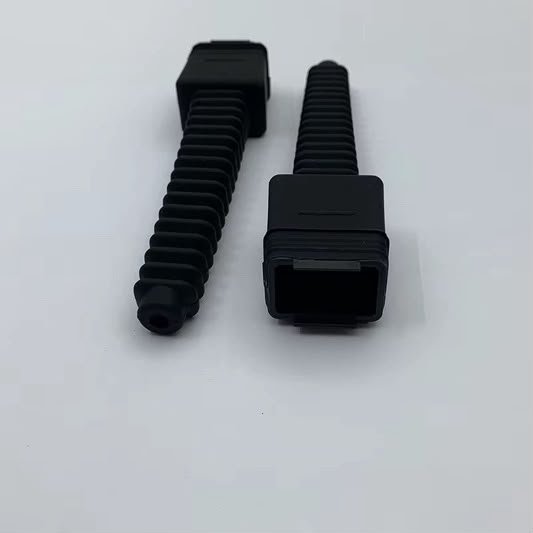

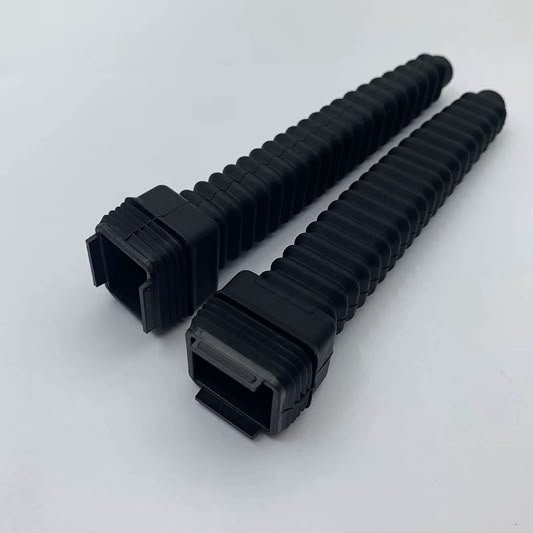

| NSN Boot | Flexible waterproof long boot, Nokia-compatible |
| Fiber Type | Single Mode, typically G.657.A1 / G.657.A2 |
| Fiber Count | 2 Core / Duplex |
| Cable Construction | Armored steel tube/tape + protective fiber structure |
| Cable Diameter | Approx. 5.0 mm / 7.0 mm, depending on configuration |
| Outer Jacket | LSZH, Black |
| Connector Polish | UPC / APC |
| Insertion Loss | ≤0.30 dB typical maximum |
| Return Loss | SM/APC ≥60 dB; SM/UPC ≥50–55 dB |
| Water & Dust Protection | IP67 |
| Mechanical Life | ≥500 mating cycles |
| Operating Temperature | Approx. -20°C to +70°C |
| Cable Length | 1 m to 150 m or customized |
| Application | CPRI, FTTA, BBU-to-RRU/RRH, 3G/4G/5G Base Stations |
| Compatibility | Nokia outdoor/FTTA equipment |
| Environment | Outdoor, harsh environment, moisture, dust and UV exposure |
