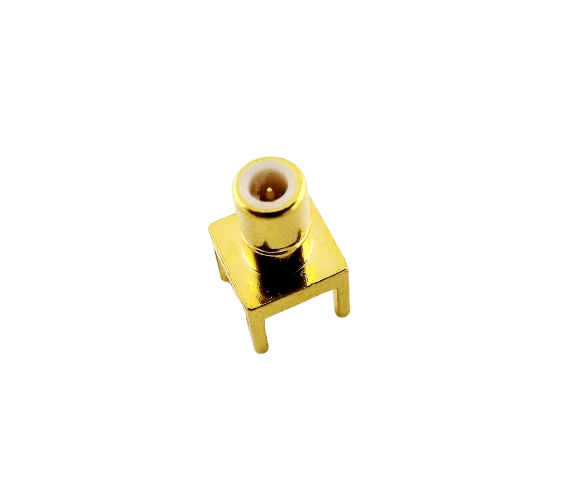

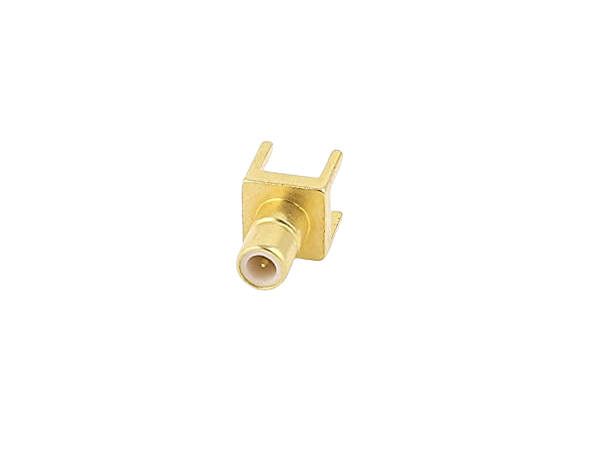

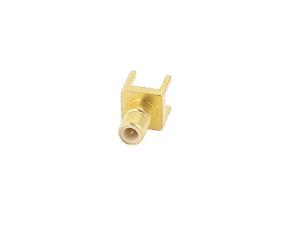

A standard SMB male connector designed for through-hole PCB mounting. It provides a secure, soldered connection for a stable connection point directly on a circuit board.
This SMB male connector is designed for secure, permanent mounting on a printed circuit board (PCB). It’s intended for through-hole soldering, which creates a very strong mechanical and electrical connection to the board, making it robust against physical stress and vibration. It’s widely used in test equipment, industrial controls, and other professional electronics where a stable and durable connection point is needed.
| Brand | RF CONNECTOR HOUSE |
|---|---|
| Material | Brass |
| Characteristic Impedance | 50O |
| Frequency Range | DC-3 GHz |
| VSWR | = 1.15(0~3GHz) |
| Dielectric strength | =25000V RMS, at sea level |
| Dielectric Resistance | > 5000 M ? |
| Contact Resistance | Center Contact = 1.0 M ?, Outer Contact =0.25 M? |
| Insertion Loss | = 0.08dB (@2200MHz) |
